Commercial Silient Model IA

The Commercial Silient Model IA is engineered to deliver reliable, on-demand cold water for high-traffic shower facilities. Designed for performance, efficiency, and durability, it provides 40–60 gallons of chilled water per hour—enough to support up to 70 shower uses in a single hour.

Performance You Can Count On

• Available Capacity: 40–60 gallons of chilled water per hour*
• Use Case: Supports 20-second shower cycles up to 70 times per hour
• Minimum Output Temperature: 45°F
• Operating Range: 55–80°F ambient temperature
• Municipal Inlet Max Temperature: 85°F
• Noise Level: ~70 dB

Advanced Chiller System

• Units per System: 1
• Condensing Unit Size: 1 HP
• Refrigerant: R448a (eco-conscious and efficient)
• Dimensions: 30.5” L × 26.4” W × 27.6” H
• Weight: ~140 lbs

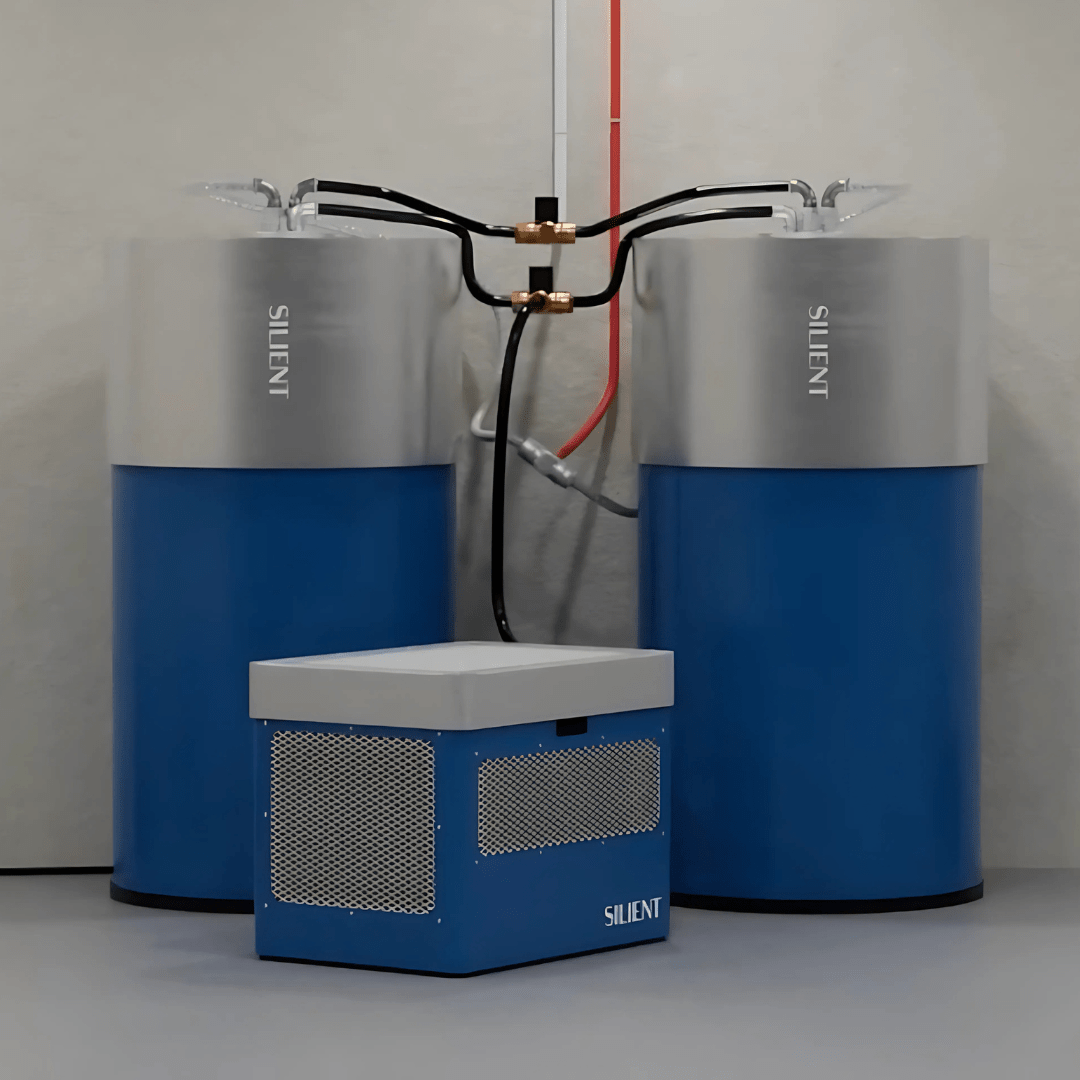

Dual Tank Storage

• Two 80-gallon insulated tanks per system
• Tank Dimensions: 29” diameter × 53” height
• Tank Weight: 128 lbs empty, 670 lbs full
• Chilled Water Outlet: ¾” MNPT

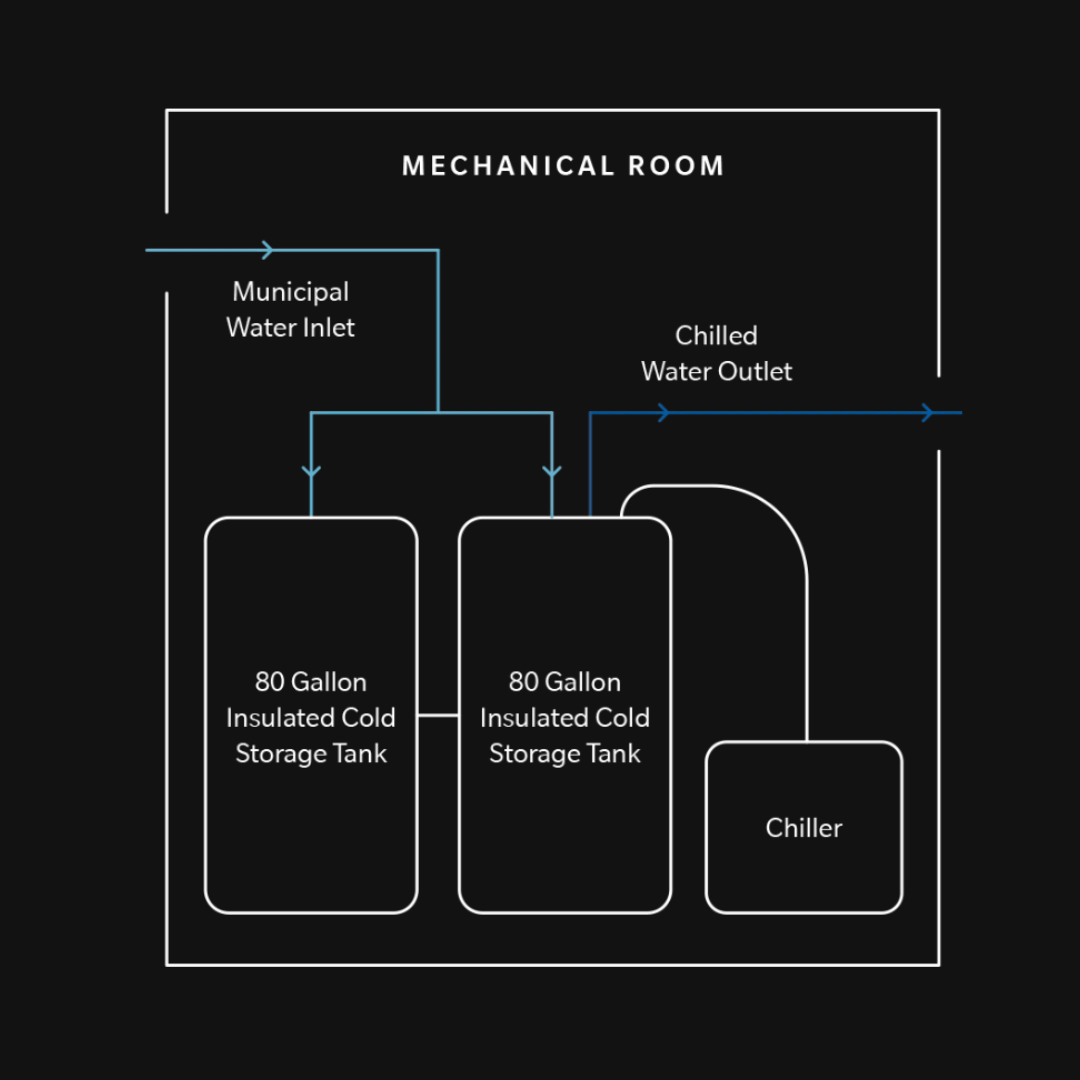

Installation & Requirements

• Location: Mechanical room installation with optional showerhead plumbing fixtures
• Plumbing: Two municipal water inlet connections per tank (¾” MNPT), one chilled water outlet connection (¾” MNPT)
• Space Requirement: ~6’×5’ or ~9’×3.5’ footprint with minimum 62” overhead clearance
• Electrical: 208–230V/60Hz/1Ph, ~11–15 Amps (20 Amp breaker required)
• Connectivity: Built-in WiFi (2.4 GHz) and Bluetooth v4.2

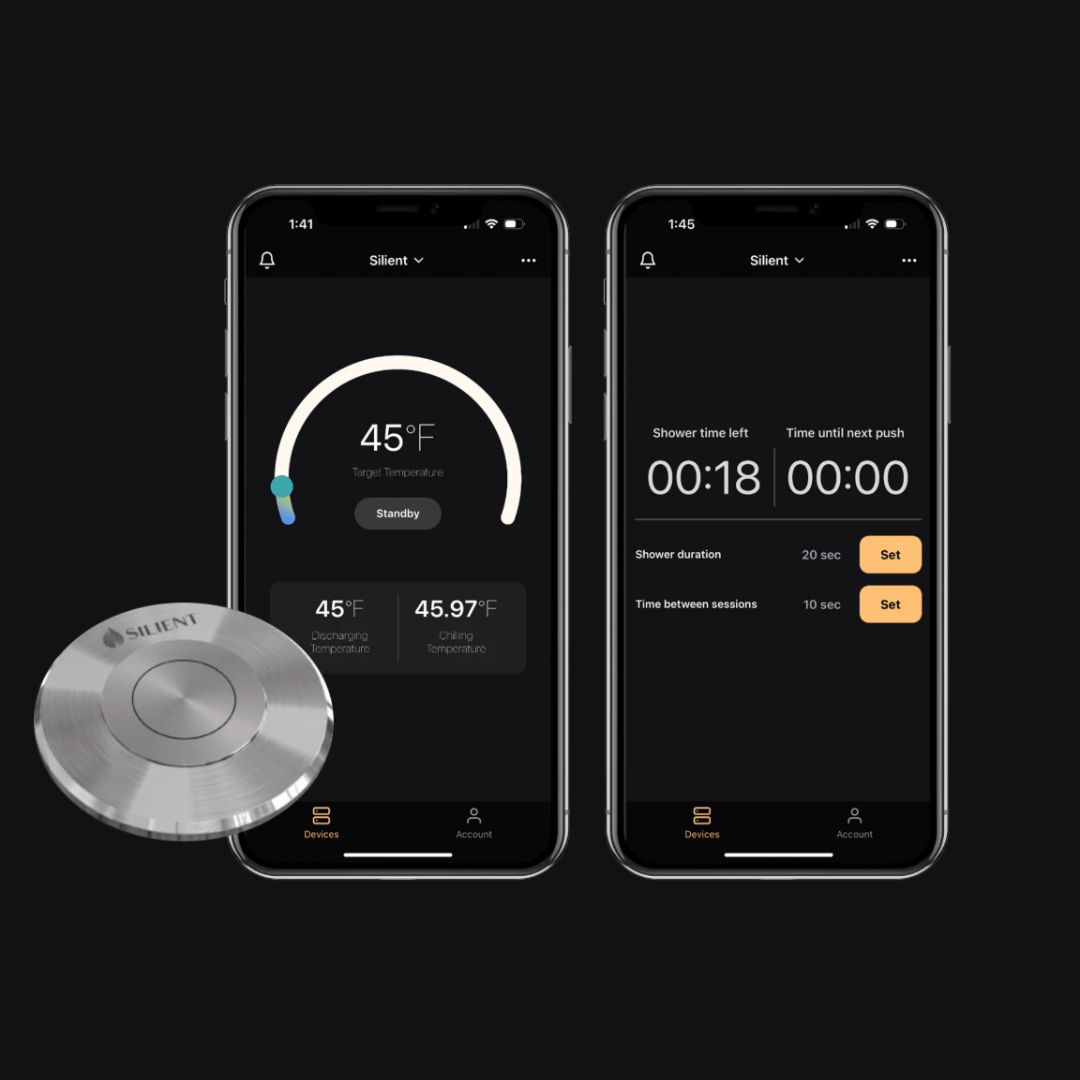

• Smart Control: iOS smartphone app for temperature setting and shower management

*Please call for consultation & lead times.
